Connector

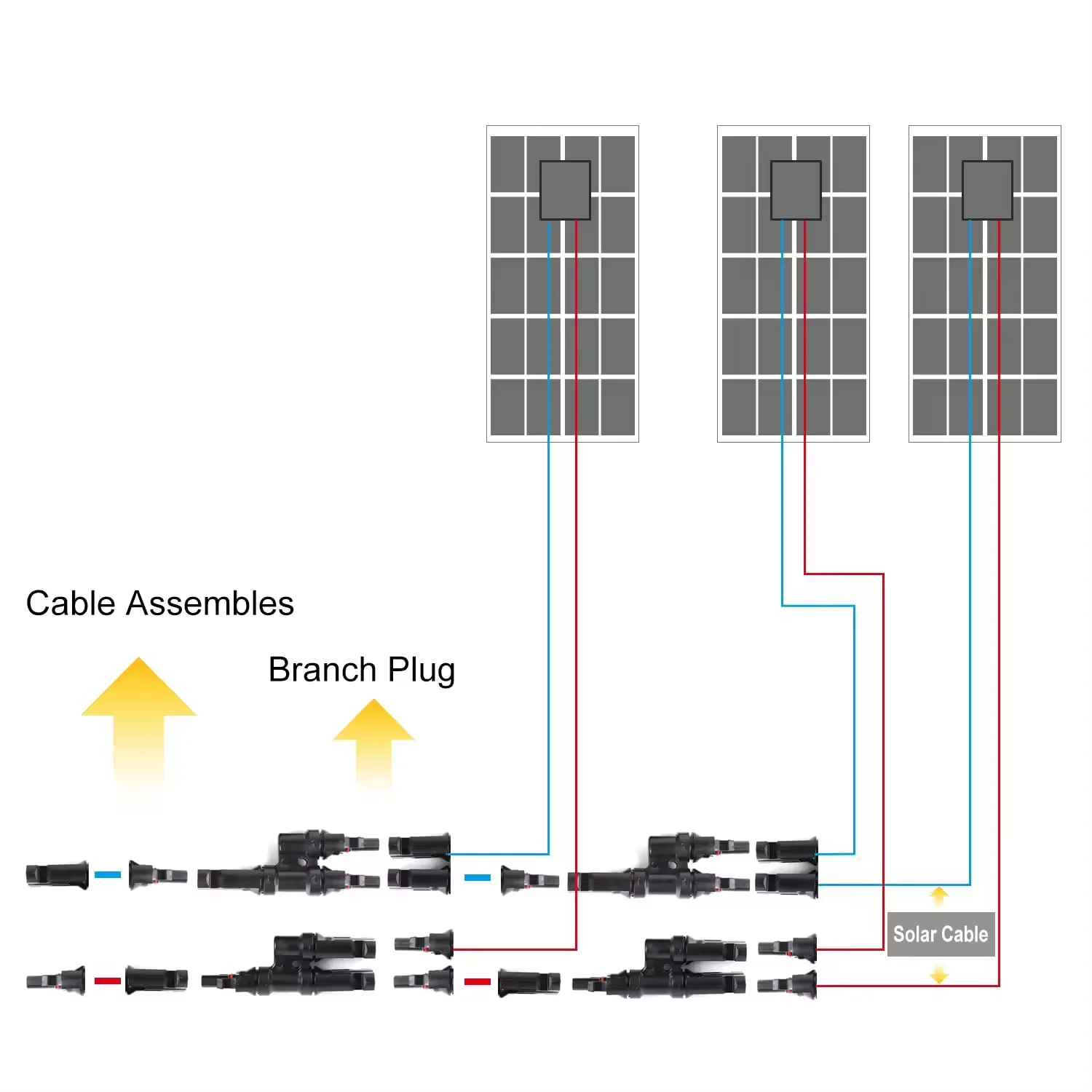

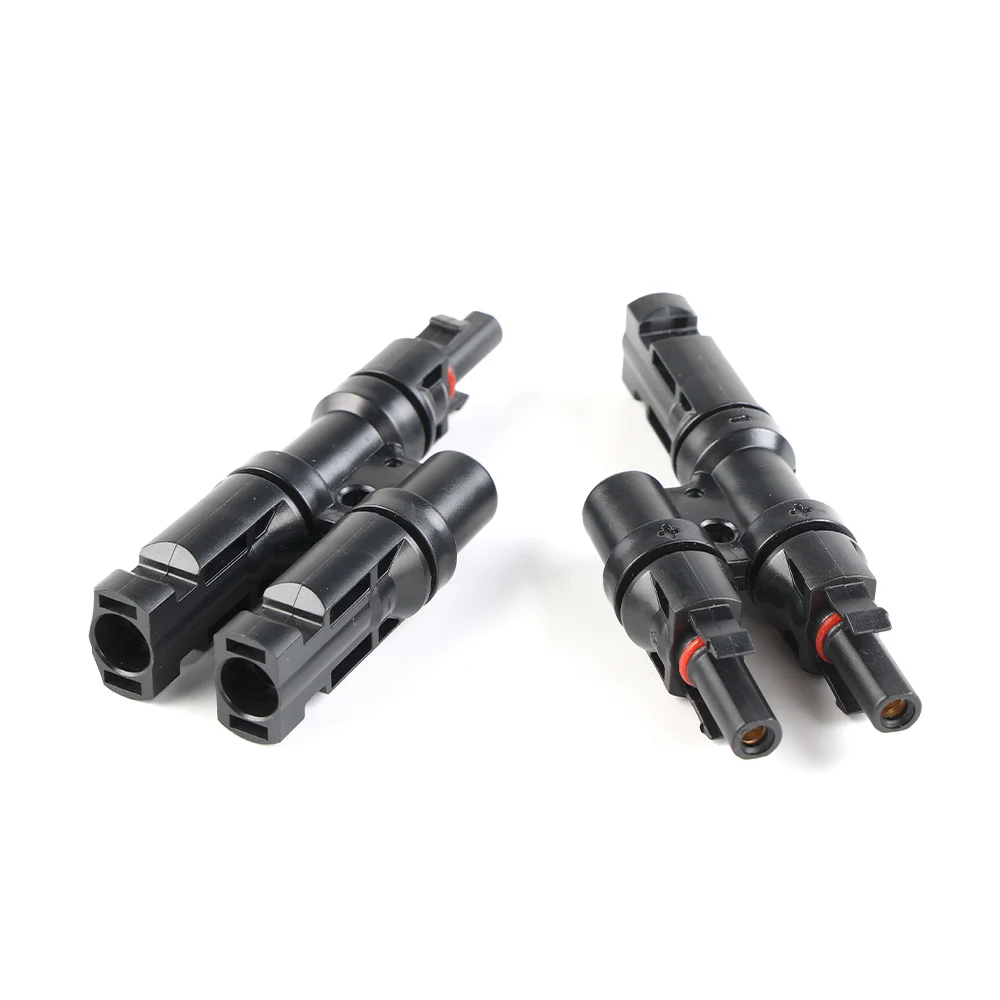

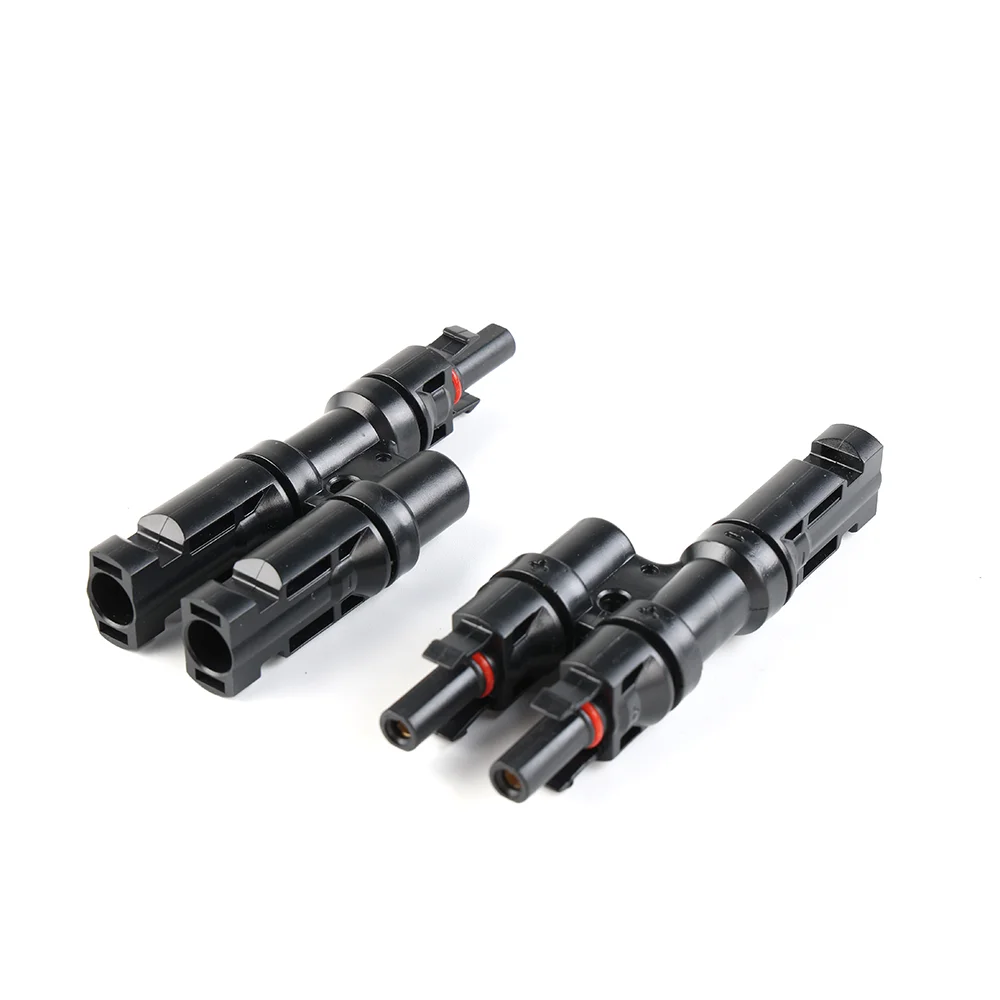

Waterproof Solar PV Power MC T Y Branch Connector MMF+FFM for Parallel Connection Between Solar Panels
$3-4
Applications
Solar panel arraysRV solar prepPortable powerBattery systems
| Quantity | Unit price |
|---|---|
| 50 – 199 | $4 |
| 200 – 499 | $3.50 |
| 500 – 999 | $3.20 |
| ≥ 1,000 | $3 |
OEM / ODM options can include logo, color, size, packaging and material. Availability, MOQ, sample timing and bulk lead time are confirmed for each RFQ.
Specifications
| Type | solar connector |
|---|---|
| Gender | both |
| Package | Each set per polybag |
| Brand Name | Sinasolar |
| Application | Power |
| Model Number | MC-T2 |
| Safety Level | class |
| Rated Current | 3A~8A(Fuse) |
| Rated Voltage | 1500V |
| Insertion force | ≤50N |
| Place of Origin | Zhejiang, China |
| Contact Material | Copper |
| Protection Class | IP65 |
| Withdrawal force | ≥50N |
| Ambient temperature range | -40~+85oC |
